Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.They are easy to use and are economical,they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.
|

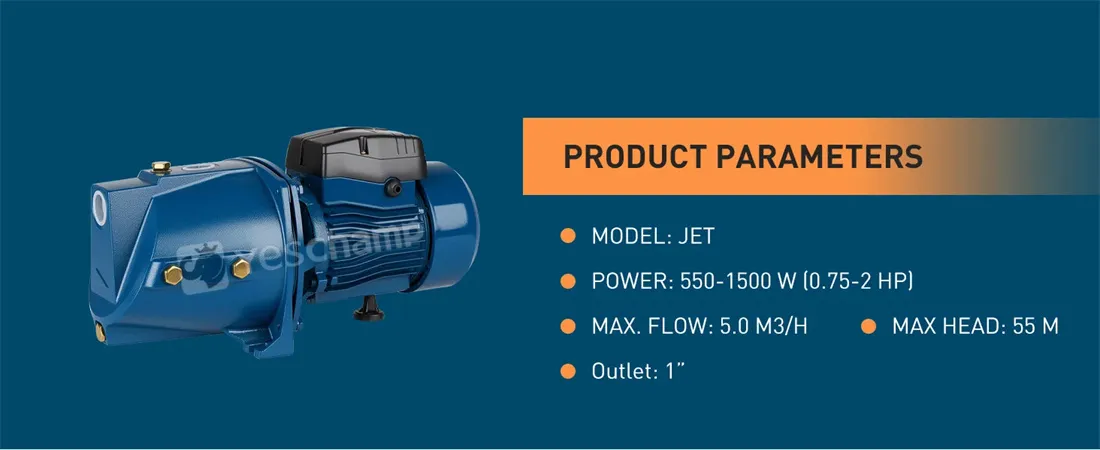

Self-Priming JET Pump
|
||||
|
Flow Range
|
50 L/min to 83L/min
|
|||
|
Head Range
|
43 m to 55 m
|
|||
|
Power Range
|
0.75hp to 2hp
|
|||
Material ：
*Pump body : Cast iron Pump support : Cast iron
*Motor housing : Aluminum
*Impeller : Brass or PPO plastic
*Diffuser : PPO plastic
*Motor shaft : Carbon steel, AlSl304 SS if request
*Mechanical seal : Ceramic/Graphite
Motor :
*Two-pole induction motor(n=2850 r.p.m)
*Insulation Class F
*Protection lP44
*Continuous service S1
*Thermal protector for single phase
*Single-phase 220V/50Hz,110V/60Hz if request
*Three-phase 380V/50Hz,60Hz if request
Operating conditions:
Liquid temperature up to 60°C
Ambient temperature up to 40"C
Total suction lift up to 9m
