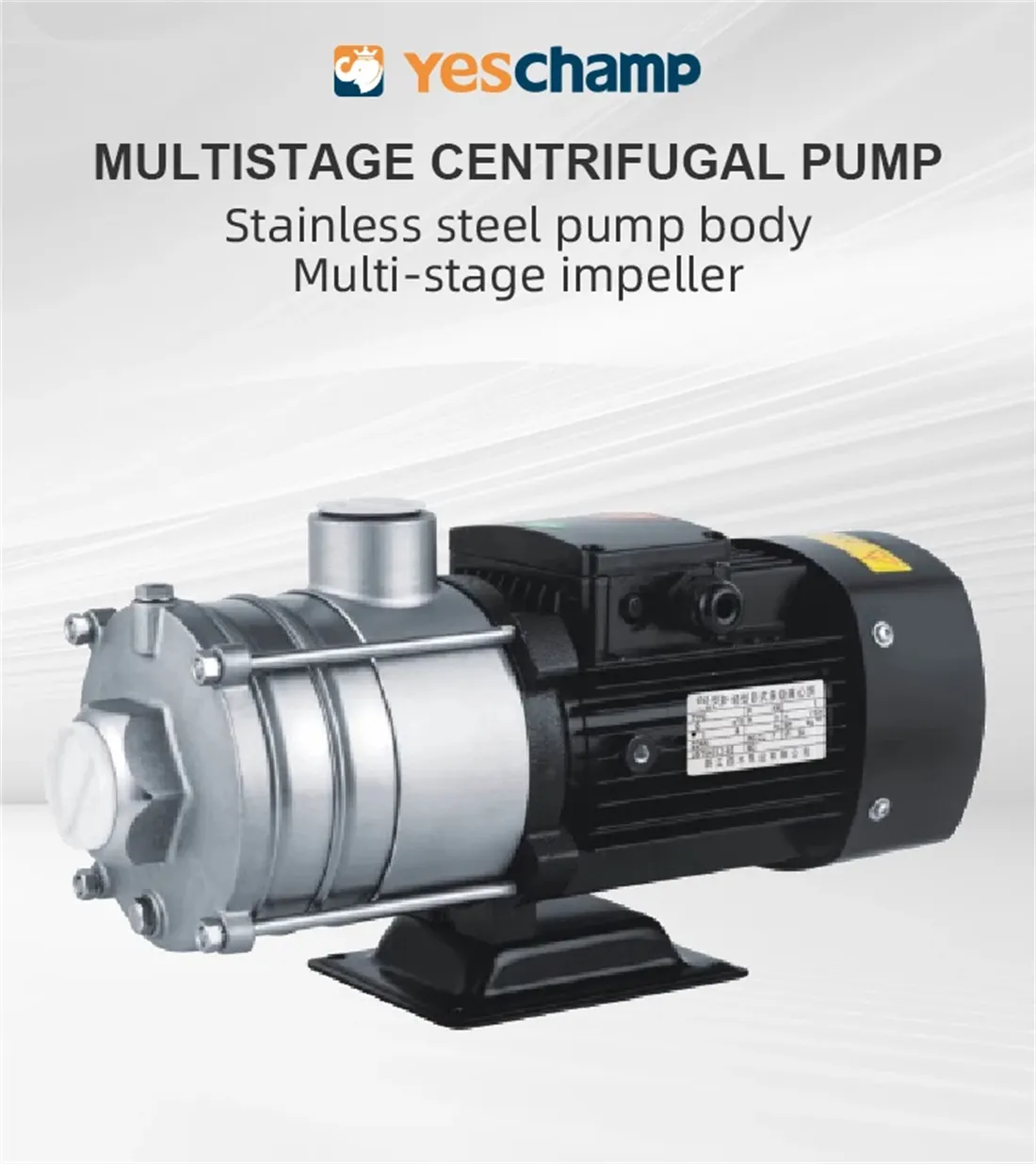

Pump Description:
1.Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
2.Compact structure renders small size of pump: axial inlet and radial outlet.
Application:
CHL,CHLK and CHLF(T) type pump are mainly used in industrial field:
*Air-conditioning system
*Cooling system
*Industrial cleaning
*Water treatment(Water purification)
*Aquiculture
*Fertilizing/metering system
*Environmental application
*Other special application
Application medium:
*Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
*Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
*When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
*Whether a specific liquid is suitable for the pump depends on many factors, amongwhich the most important ones are chlorine content, PH value, temperature, solvent and oil content.

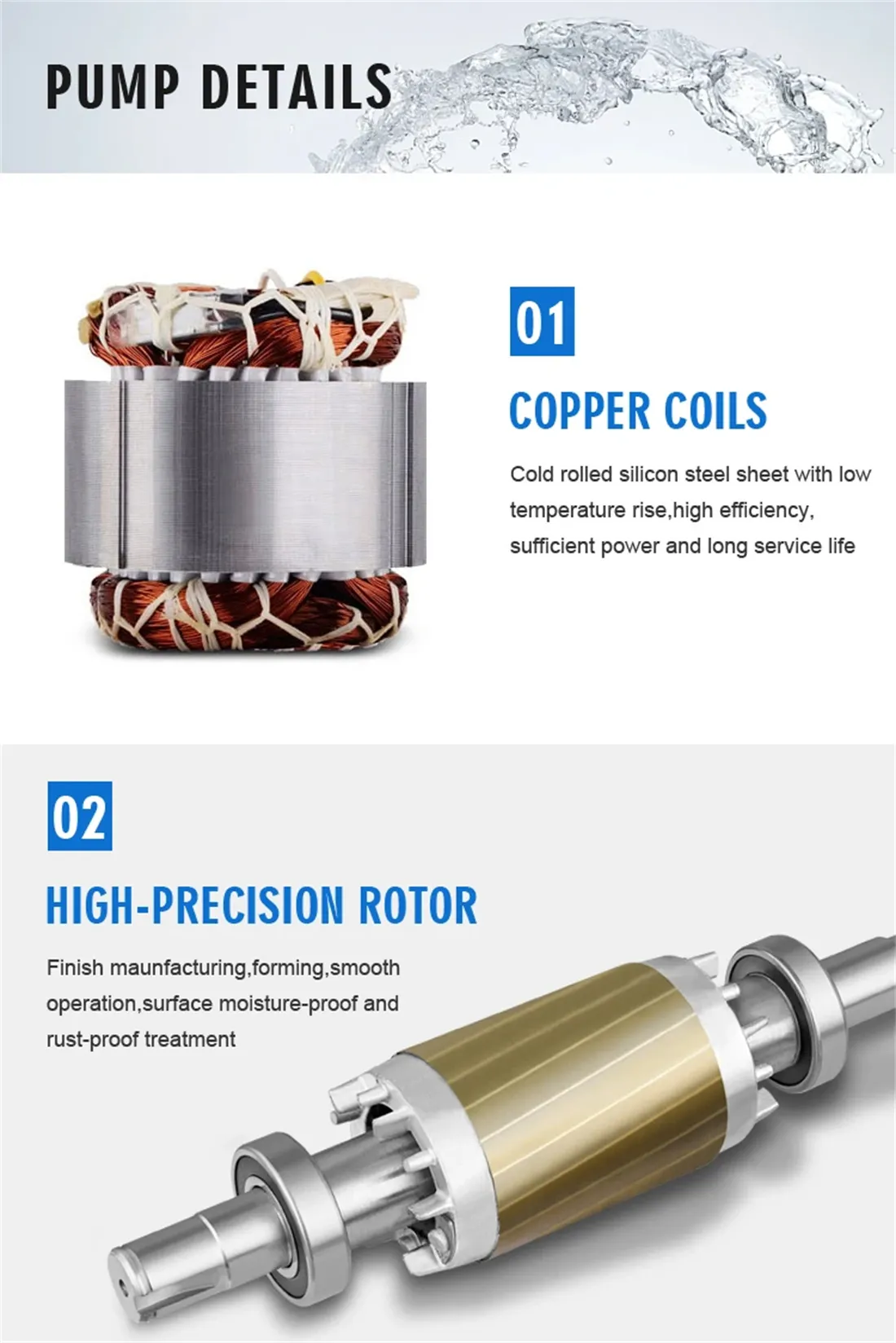

Motor:
*TEFC motor 2-pole
*Protection class: IP55
*Insulation class: F
*Standard voltage, 50Hz: 1x220-240V
3x220-240V/380-415V
*Standard voltage, 60Hz: 1x220-240V
3-220-240V/380-415V
*Single phase motor(max): 2.4kw
Liquid temperature:
Normal temperature type: -15 ºC~ 70 ºC
Hot water type: -15 ºC~ 110 ºC
Ambient temperature: up to 40 ºC
Max.operation pressure: 10 bar
Max.inlet pressure is limited by max.operation pressure.
