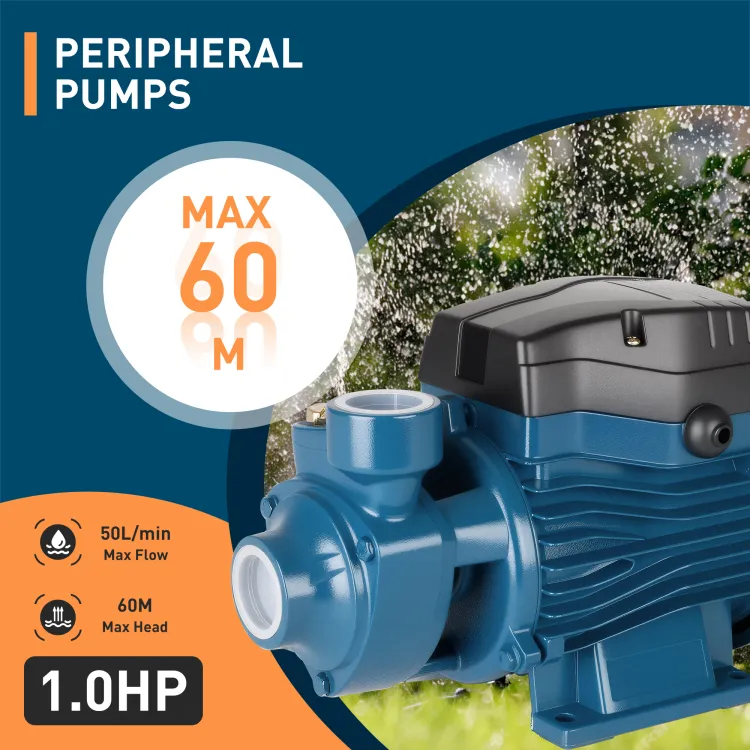

Peripheral Pumps

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.

info@yeschamps.com +86-576-86090666 +86-18667600006

Online Inquiry Contact

Product descriptions from the supplier

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.They are easy to use and are economical,they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.

QB Series Vortex Pump
Flow Range	30 L/min to 50L/min
Head Range	33 m to 60 m
Power Range	0.5hp to 1hp

Material ：

Pump body:Cast iron,with brass/AlSl304 SS insert if request. Pump support: Cast iron,with brass/AlSl304 SS insert if request. Motor housing: Aluminum Impeller: Brass Motor shaft: Carbon steel,AlS| 304 SS if request. Mechanical seal: Ceramic/Graphite
