Suitable for use with clean water that does not contain abrasive particles.
As a result of their reliability and the fact that they are easy to use,and suitable for use in applications such as domestic,gardening, irrigation and emptying tanks.
|

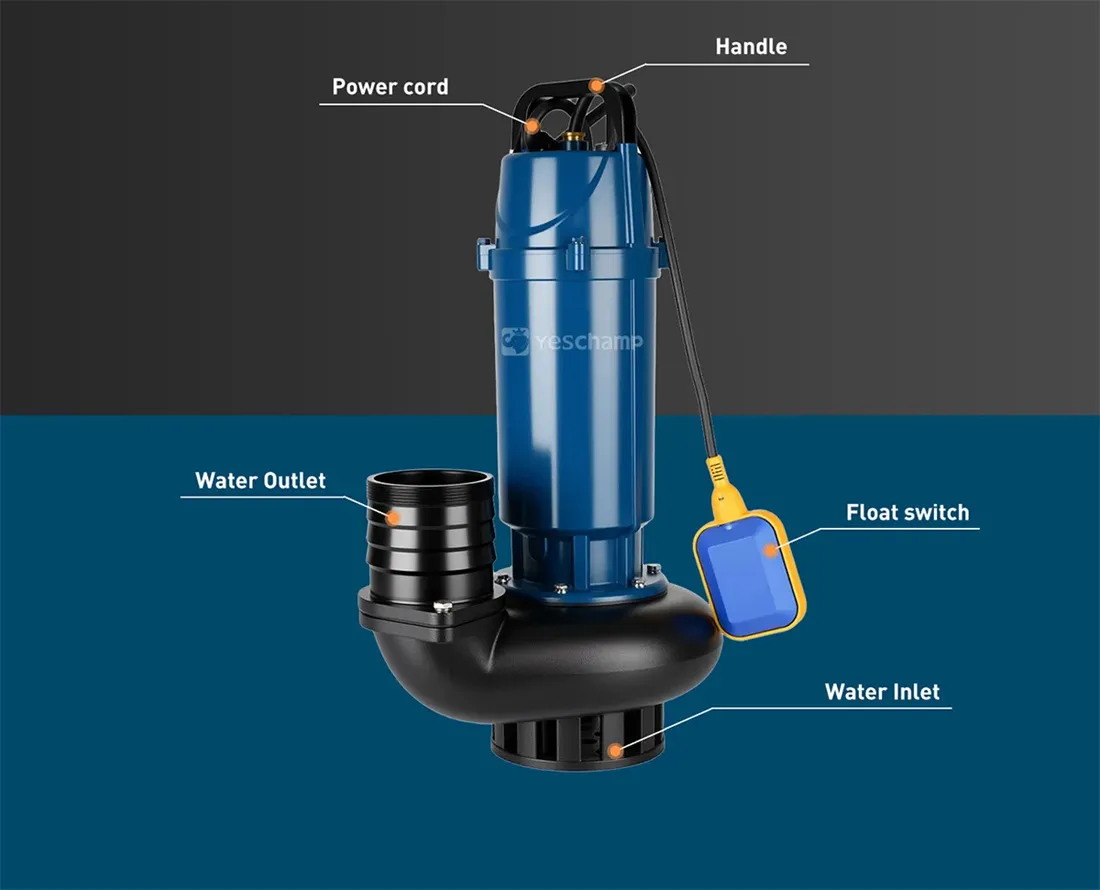

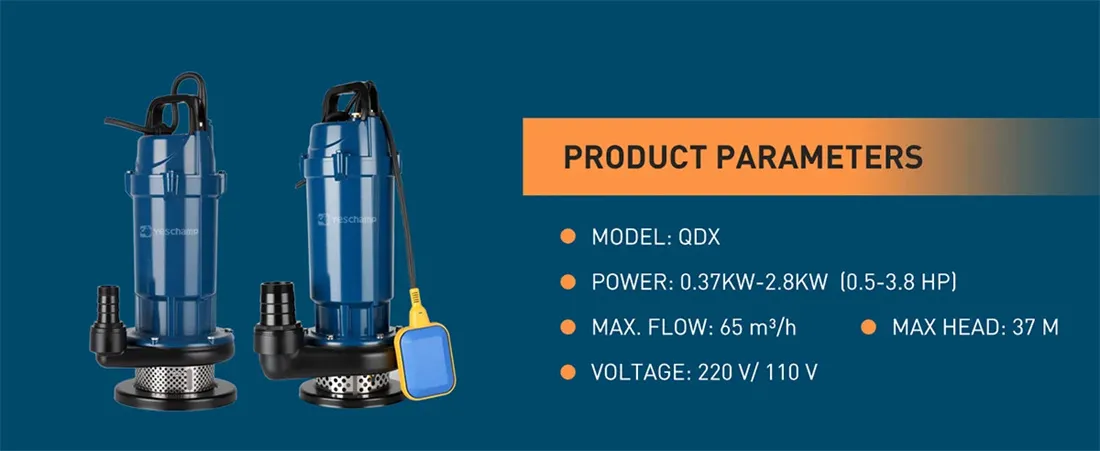

Submersible Pump
|
||||
|

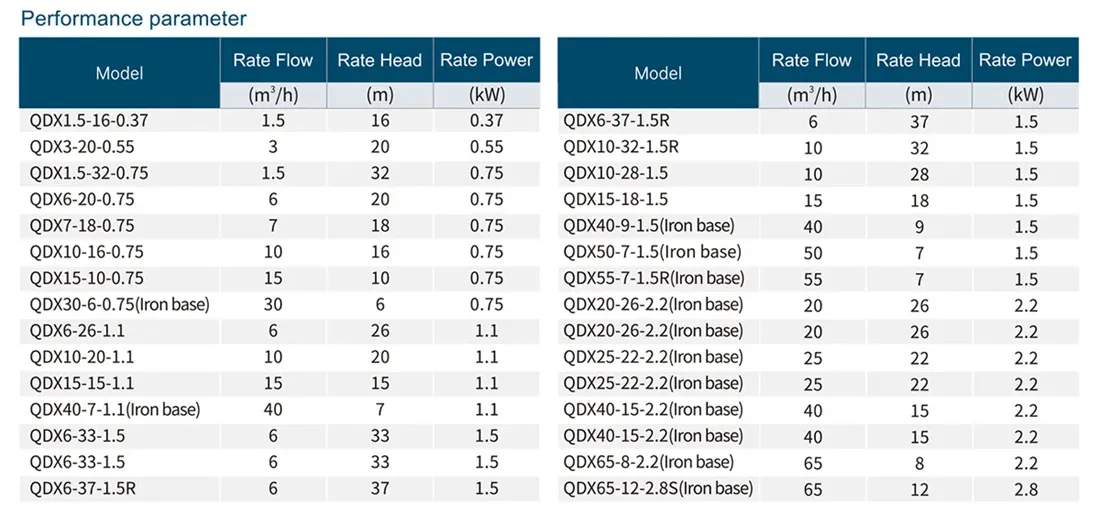

Flow Range
|
1.5 m³/h to 65 m³/h
|
|||
|
Head Range
|
7 m to 37 m
|
|||
|
Power Range
|
0.37hp to 4hp
|
|||
Material ：
*Pump body : Cast iron
*Motor housing : Aluminum
*Impeller : Aluminum
*Motor shaft : Carbon steel or AlS| 304 SS
*Mechanical seal : Ceramic or Graphite
*Cable : 7m power cable with plug

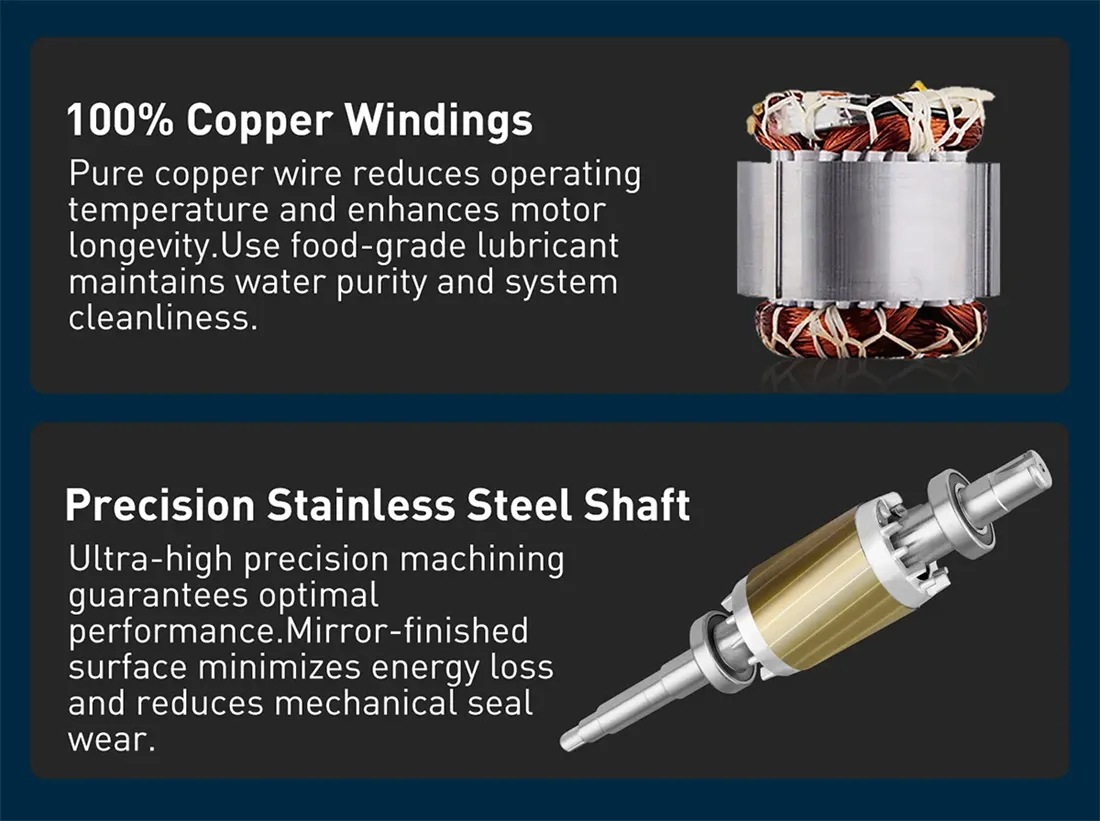

Motor :
*Two-pole induction motor(n=2850 r.p.m)
*Insulation Class F
*Protection lP68
*Continuous service S1
*Single-phase 220V 50Hz/60Hz
Operating conditions:
*Liquid temperature up to 35°C
*Liquid temperature up to 35℃
*5m maximum immersion depth
Accessories
Product packaging
Applications
